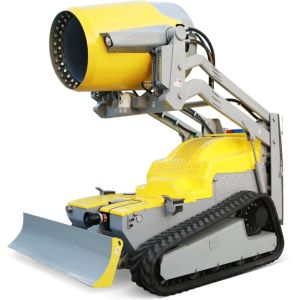

Diesel Fire Fighting Robot 80L/s for Petrochemicals

Product Categories

Sichuan Chuanxiao Fire Trucks Manufacturing Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Diesel Fire Fighting Robot 80Ls for Petrochemicals
Brand: CXFIRE
Price: 100000 USD

Brand Name : CXFIRE

Model Number : CX-RXR-YM80000D

Certification : CCC, CE, EN, NFPA

Place of Origin : China

MOQ : 1 Unit

Price : USD100000-USD200000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 units per year

Delivery Time : 3-5 months

Packaging Details : Standard Export Package and Delivery by Ship

Application : Petrochemicals, Oil tank areas, Large warehouses etc.

Traction Type : All-Terrain High-Intensity Track

Power Type : Diesel

Color : Red or Yellow

Dimension : L3240mm×W1860mm×H2220mm

Weight : 4650kgS

Flow of Monitor : 80L/s

Spray Arrange : 80m

Contact Now

No.	Item	Data
Basic parameters
1	Dimension	Length3240mm×Width1860mm×Hight2220mm
2	Weight	4650kg
3	Traction mechanism	All-terrain high-intensity track, track internal adopts metal frame
4	Tractive force	30000N
5	Speed	3.6km/h
6	Obstacle crossing height	175mm
7	Roll angle	25°
8	Climbing ability	25°
9	Turning diameter	4300mm
10	Control mode	Wireless remote control
11	Communication distance	1km(Affected by weather, environment, terrain, etc. )
12	Protection grade	IP54
13	Fire hose inlet connections	BS-336, 2.5"
Wind cannon parameters
14	Exhaust air volume	80000m³/h
15	Air supply distance	50m
16	Water mist range	37m
17	Working pressure	1.2MPa
Monitor parameters
18	Working pressure	1.2MPa
19	Maximum flow	80L/s
20	Range	80m
Image acquisition parameters
21	Infrared camera	Image resolution 700TVL
HMI parameters
22	Dimension	Length 420mm×Width 300mm×Height 110mm
23	Weight	7kg
24	Display	10-inch high brightness LCD screen
25	Display images	3 Video channel switch
26	Working hours	8h
27	System	Windows7 operating system
Intelligent configuration
28	Sound collection at scene	√
29	Automatic obstacle avoidance	√
30	Heat eye detection	√
31	Multiple gas detection	CO,NH3,H2S,O2,CO2,Flammable gas
32	Internet remote control	√
33	Function of internet	√
