4*4 Fire Fighting ATV Motorcycle with Water Tank & Pump

Product Categories

Sichuan Chuanxiao Fire Trucks Manufacturing Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 44 Fire Fighting ATV Motorcycle with Water Tank amp Pump
Brand: CXFIRE
Price: 25 USD

Brand Name : CXFIRE

Model Number : HS-700UTV

Certification : CCC, CE, EN, NFPA

Place of Origin : China

MOQ : 1 Unit

Price : USD25,000-USD30,000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 2000 units per year

Delivery Time : 4-5 months

Packaging Details : Standard Export Package and Delivery by Bulk Carrier or Ro-Ro Ship

Dimensions : 3010mm*1575mm*2200mm

Weight : 1130Kgs

Chassis : HS-700UTV

Engine Power : 700cc

Cabin : Single Cabin with 2 Seats

Superstructure : Aluminum Alloy Welded Structure

Liquid Tank : 100L Water and 20L Foam Tank, PP Material

Water Pump : 40L/min.@4Mpa

Water Nozzle : 30L/min.@1Mpa with 15m Spray Distance

Paint : Red Color and U.S. PPG Brand

Contact Now

1. Technical Specification for 4*4 Fire Fighting ATV Motorcycle

Model	HS-700UTV
Dimensions (mm)	Approx. Length:3010, Width:1575, Height:2200
Total weight (kg)	Approx. 1130 with full load
Engine Type	Gasoline, 700cc, water cooled, 4-valve, 4-stroke, 1-cylinder
Max. Power	25kw / 6000rpm
Driving type	Front engine, four-wheel drive 4x4
Max. speed (km/h)	60
Ground clearance (mm)	310
Emission standard	Optional
Motor for water pump	HONDA Brand
Motor type	Four-stroke, 1 cylinder
Rated Power (KW)	4
Starting method	Electric
Rotation speed (r/min)	3600
Water Pump	KAPPA430 of Italy
Flow rate (l/min)	40
Work Pressure (Mpa)	4
Self-suction function (meters)	5
Rotation speed (r/min)	650
Hose Reel Model	JPL-13/19-CX-Y
Length of hose (meters)	30
Test Pressure (bar)	100
Internal and external diameter (mm)	13/19
Water Nozzle Model	GYQ30
Shot range of straight stream (meters)	15
Shot range of mist spray (meters)	7
Flow rate of water nozzle (l/min)	30
Control rate of foam proportioner	0.4~6%
Flow rate (l/min)	adjustable
Water tank (Liters)	100
Independent Foam Tank (Liters)	20

2. Company Profile

CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years' development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.
With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.

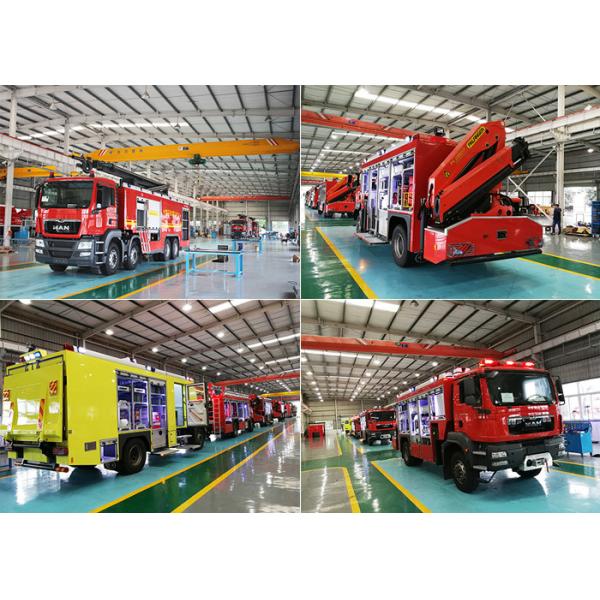

3. Enterprise Pictures for Reference
